Seco Adjustable Tilt Monument Mounts For 2 Inch Pipe with MPT 2 x 11-1/2 TPI - 2072-31

For 2-inch pipe with MPT 2 x 11-1/2 TPI. Great for setting up a permanent stand in lieu of a tripod to mount a GNSS receiver or base stations.

Manufacturer: Seco

Manufacturer part number: 2072-31

$403.80

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Description

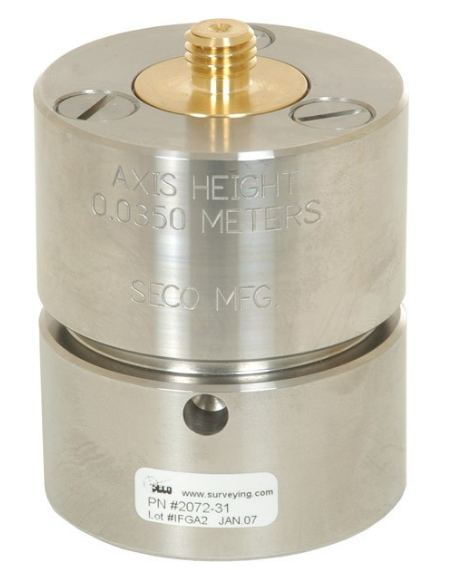

The adapter has 3.20-inch (8.19 cm) diameters and overall heights of 3.036 inches (7.71 cm)
Includes a removable brass 5/8 x 11 male stud that is adjustable in azimuth and held in location by two set screws
The adapters are leveled by three screws with a tilt range +/- 7°
The height above the pivot point to the stud shoulder is 1.37 inches (3.50 cm)
The height below the brass 5/8 stud to the shoulder is 0.463 inches (1.18 cm)
The axis height is engraved on the outside of the monuments
Weighs 6.80 lb (3.08 kg)
