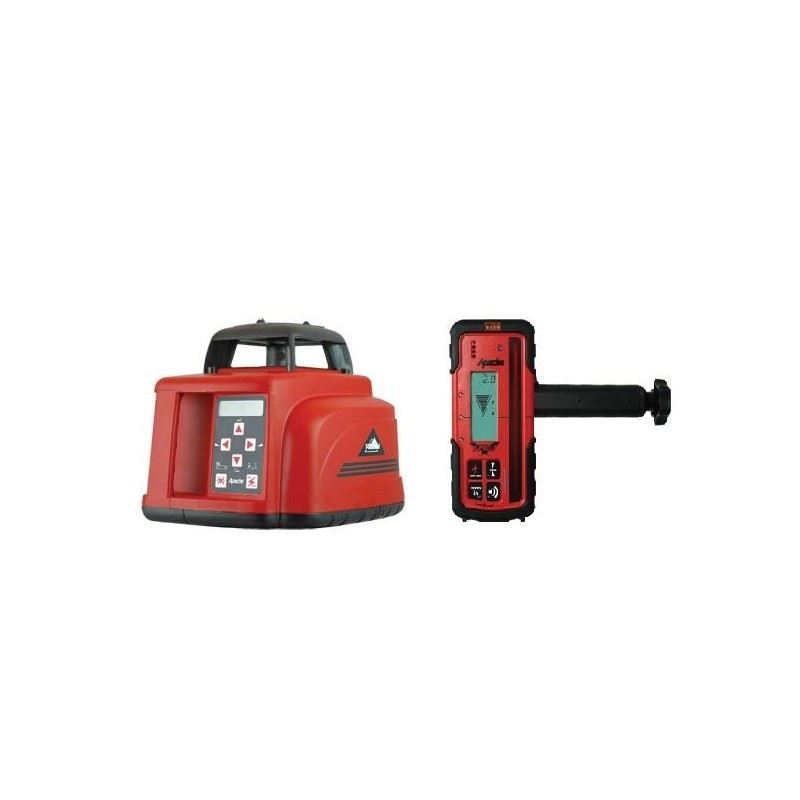

Apache Summit 1 Single Grade Laser

• Levelling concrete forms and footings

• Vertical alignment and plumb for anchor bolt and form alignments

• Grading and excavating

• Concrete sections with run-off for sports field, tennis courts, driveways, etc.

• “Over the Top” sewer and storm drain pit installations

• Steep slope road embankments and ditch banks

• Parking garages, ramps and drainage

Operating Diameter : 600M

Level / Vertical Accuracy: 10 arc seconds — 1.5mm @ 30M

Grade Range: -10 to +15% Single Axis

Compensation Method: H/V Electronic Self Levelling

Transmitter Battery Life: 4 x D NiMHs….28 hours

Rotation Speed: 300, 600 RPM selectable

Operating Temperature: -20º to +50ºC

Remote Control Type: Full 2-way communication Operation and security lock with transmitter

Remote Control Range: 100M radius

Environmental: IP66

Laser Type/Class: 3 mW 650nm, Class 2

Remote Battery Life: 2 x AA Alkaline…130hrs continuous, 1 year under normal use

Temperature Compensation: Every 5ºC

Grade Resolution: 0.001% up to 9.999% — 0.01% to higher grades

Grade Compensation: Yes

Mask Mode: User selectable to any window, 3 windows maximum
