Focus 35 Product Brochure
Factory Refurbuished Product Condition:
Trimble , Nikon and Spectra Precision Refurbished equipment is in like new condition. Product meets manufacturing & service repair specifications and is in working order. Product has little to no physical appearance of use and includes accessories.
Note: FRU are Field Replacement Units. These do not include accessories.
Warranty (90 Days):
Refurbished products include a 90-day limited warranty from date of shipment. In addition, Trimble offers Extended Warranty options. If a one-year extended warranty option is purchased at the point of sale, this will allow for a total of 15 months of warranty.
What is included with your Refurbished Equipment:
· All accessories that came with the equivalent new item (based on part number)
· Items designated as “FRU” (Field Replacement Units) only include the refurbished item
What is not included with your Refurbished Equipment:
· Warranty cards
· Firmware CD’s
· Options codes are not included and will need to be purchased from the Trimble Store
Trimble Protected Extended Warranties
· The Standard Warranty for Refurbished Equipment is 90 days from date of shipment
· Trimble Protected Extended Warranties add 12 months, totaling 15 months
· The recommended Trimble Protected Extended Warranty part number is shown in your shopping cart as a recommend item to ad for eligible items
Featuring World Class Spectra Precision Field Software

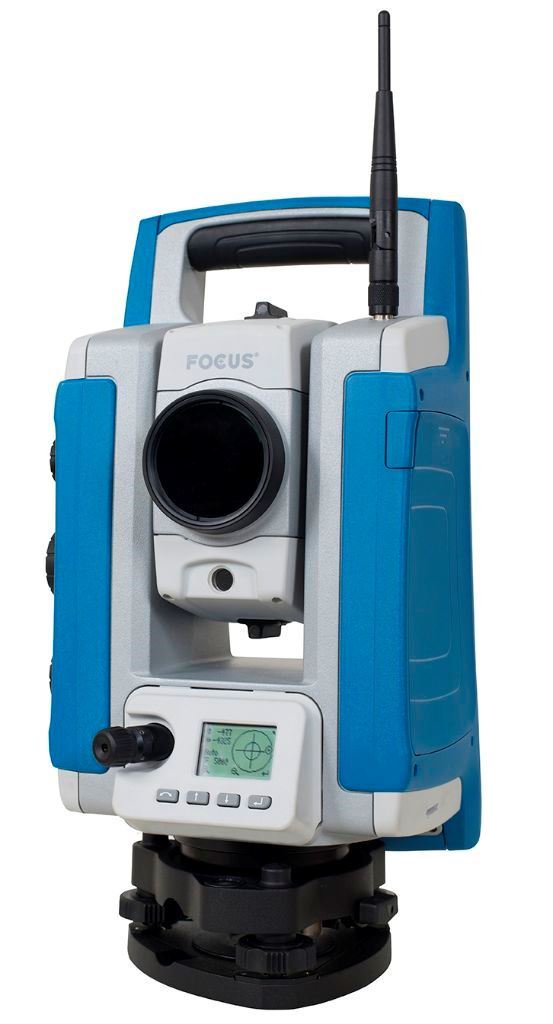

Introducing the powerful Spectra Precision® FOCUS®v 35 Series Total Stations. This fully robotic motorized solution provides improved speed, accuracy and precision in measurement. A robotic instrument moves the power of the observer from the instrument to the range pole improving the quality of your work.
All robotic instruments include:
- Motorized drive system at the instrument
- A tracking sensor to track the range pole and prism
- A communication connection between the instrument and range pole and prism
StepDrive
The speed of observation and precise positioning of the FOCUS 35 robotic total station is provided by patented StepDrive™ technology. StepDrive controls the horizontal and vertical motion of the motors, so there is no need for traditional motion locks. Using the motorized drives it is possible to precisely turn to, and repeat angle measurements. This results in quick and reliable measurements which substantially increases your staking productivity.
LockNGo
The Robotic and LockNGo™ FOCUS 35 models include a tracking sensor that uses LockNGo technology enabling the instrument to constantly lock onto the prism. The benefit of LockNGo technology is the ability to follow the prism at all times and reduces downtime from not having to re-point the instrument on every observation.
Communication Link
To maintain contact between the FOCUS 35 instrument and the remote observer with the range pole and prism, the robotic solution must include a communication link. The FOCUS 35 uses an integrated 2.4 GHz radio modem as does the Spectra Precision Ranger™ 3 data collector. The 2.4 GHz radio modems provide interference free robotic data communications. Once your robotic communications have been established you can control all the functions of the FOCUS 35 from the range pole as you move through the job site making measurements. This makes it possible for a single surveyor to perform high accuracy stakeout, layout or topographic surveys by themselves. From high-order control surveys to topographic data collection or fast-paced construction layout, you can rely on a FOCUS 35, even in harsh outdoor conditions.
FOCUS 35 and Survey Pro
The FOCUS 35 and Spectra Precision Survey Pro provide you with world class solutions for any surveying application. An example of these features includes a unique robotic software technology that can be used when associating the FOCUS 35 with a low-cost GPS receiver and Survey Pro software. This combination of technologies allows the user to take full advantage of the Spectra Precision GeoLock™ technology to keep locked on target.
The Spectra Precision GeoLock Technology
Offered in Survey Pro this technique allows a robotic total station to perform an aided search for an optical target using an initial GPS position. The remote instrument can then be directed towards the robotic roving operator using the GPS position and a subsequent search is quickly performed to re-acquire the target at the robotic rover. This technique greatly reduces wasted time, improving your field work efficiency.
FOCUS 35 and Layout Pro
Spectra Precision Layout Pro™ software and the FOCUS 35 together offer the convenience of carrying, managing, editing, and laying out your job site blueprint. This combination is a critical tool in the field of construction layout and is designed to make the layout process more productive, accurate and reliable. For example, use Layout Pro to guide the layout of the major points, add string dimensions on the print, as well as calculate diagonals and angles.
Features
- Survey Pro™ and Layout Pro™ software
- GeoLock™ GPS assist technology
- 1”, 2”, 3” and 5” angle accuracy
- StepDrive™ motion technology
- LockNGo™ advanced tracking technology
- Windows CE Touchscreen
- Ultra lightweight at only 5 kg (11 lb)
- 2.4 GHz interference-free radio
- Spectra Precision Ranger 3XR data collector
SPECIFICATIONS
Angle Measurement
Accuracy (Standard Deviation based on ISO 17123-3) | 1" (.3 mgon), 2" (.6 mgon), 3" (1 mgon), or 5" (1.5 mgon) |
Angle reading (least count display) Standard 1" model Tracking | 1" (.3 mgon) .5" (.15 mgon) 2" (.6 mgon) |
Distance Measurement | |
Accuracy to Prism (Standard deviation based on ISO 17123-4) Standard Tracking | 2mm + 2ppm (.007' + 2ppm) 5mm + 2ppm (.016' + 2 ppm) |
Accuracy Reflectorless Mode Standard <300m (984') Standard >300m (984') Tracking | 3mm + 2ppm (.01' + 2ppm) 5mm + 2ppm (.016' + 2ppm) 10mm + 2ppm (.033' + 2ppm) |
Measuring Time Prism Standard Prism Tracking Reflectorless Standard Reflectorless Tracking | 2.4 sec. .5 sec. 3-15 sec. .7 sec. |
Range Prism Mode 1 Prism 3 Prisms Foil Reflector 60mm | 4000m (13123') 7000m (22,966') 300m (984') |
Range Reflectorless Mode | | | |
| Good | Normal | Difficult |
KGC (18%) | 400m (1312') | 350m (1148') | 300m (984') |
KGC (90%) | 800m (2625') | 600m (1969') | 400m (1312') |
Foil Reflector 60mm | 1000m (3280') | 1000m (3280') | 800m (2625') |
Shortest possible range | 1.5m (4.9') |
Automatic Level Compensator | |
Type | Dual-axis |
Accuracy | .5" (.15mgon) |
Working Range | ±5.5' (±100mgon) |
EDM Specifications | |
EDM Laser and Principle | |
Light Source | Lasor Diode 660nm |
Principle | Phase Shift |
EDM Beam Divergence | |
Horizontal | 4cm/100m (.13'/328') |
Vertical | 3cm/100m (.10'/328') |
Atmospheric Correction | -150ppm to 160ppm |
General Specifications | |
Coarse Leveling Electronic Coarse Leveling Range Circular Level in Tribrach | ±3° (±3.3gon) 8'/2mm (8'/.007') |
Drives Drive System Rotation Time Maximum Rotation Time Face 1 to Face 2 Positioning Time 180° (200gon) Clamps and Slow Motions Centering Centering System Plummet Magnification Focusing Distance | Spectra Precision® StepDrive™ System 90°/sec (100gon/sec) 3.7sec. 3.5sec. StepDrive™ driven, endless fine adjustment 3-pin Built-in Optical Plummet 2.4x .5m to ∞ (1.6' to ∞) |
Telescope Magnification Aperture Field of View Focusing Distance Illuminated Crosshair Tracklight Built-in Trunnion Axis Height | 31x 50mm (1.96") 1°30' 1.5m to ∞ (4.9' to ∞) Standard Standard 196mm (7.71") |
Environmental Operating Temperature Dust and Water Proofing | -20°C to 50°C (-4°F to 122°F) IP55 |
Power Supply Internal Battery Operating Time with 1 Internal Battery | Li-Ion, 11.1V/5.0Ah Approx. 6 hours |
Communications External Foot Connector Wireless Communication | USB Cable and External Power Supply Bluetooth® |
Weight Instrument Tribrach Internal Battery | 5kg (11lbs) .7kg (1.54lbs) .3kg (.66lbs) |
Robotic Specification | |
Robotic Operation Maximum Robotic Range Point Precision at 200m (656') Maximum Search Distance Search Time (Typical) | 300m to 800m (984' to 2625') <2mm (.007') 300m to 800m (984' to 2625') 2-10sec. |
Communications Internal/External | 2.4GHz, Frequency Hopping, Spread Spectrum |
GPS Search GeoLock™ GPS Search Geolock™ Range | 360° (400gon) Full Robotic Operation Range |
Data Collection | |
Control Units Fixed on Alidade Face 1 Display Keyboard Memory (Date Storage) Field App. Software Face 2 Display Keyboard Instrument Software Functions | 3.5" TFT Color Touch Screen, 320x240 Pixels, Backlight Alphanumeric Keypad 128MB RAM, 1GB Flash Survey Pro and Layout Pro 6 Lines, Monochrome, 96x49 Pixels, Backlight 4 Keys Change Face, Radio and Instrument Settings, Measurement Value Display, Leveling |
