Sorry - this product is no longer available

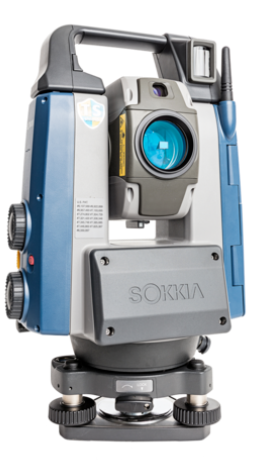

Sokkia iX-503/PSBWT w/BT, BT, RC, SD, Magnet, US- 1017223-01

The iX Series robotic total stations are a trimmed down, high- performance solution. You get the efficiency of a single-operator robotic system, the power of long range reflectorless measurements, and performance as a hybrid positioning solution.
Manufacturer: Sokkia
Manufacturer part number: 1017223-01
Old price: $21,220.00
$19,098.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

UltraSonic technology is the driving force for the iX Series. The UltraSonic motors are the thinnest, lightest, and most powerful on the market with a angle measurement of 3" – providing you with the smoothest and most accurate prism- tracking possible. It’s a difference you can see and hear immediately. With a rotation speed of 150° per-second, no matter how fast you move, or how many obstacles are in the way, you cannot outrun the iX.The iX series is 30 percent smaller than previous robotic instruments, and twice as fast with more functionality.

Our new UltraTrac technology gives you increased prism-tracking strength in all conditions. Advanced instrument algorithms deliver the confidence you need to move ahead. It’s not that you lose line-of-sight, it’s how fast you can reacquire and get back to work.

Specifications

  • Resolving power of 2.5"
  • Magnification of up to 30x
  • Angle measurement of 3"
  • Prism EDM range of 4000m
  • Non Prism range of 600m
  • Prism accuracy of 2+2 ppm
  • Non prism accuracy 2+2 ppm
  • Measuring time; Fine: .9 seconds Rapid: .6 seconds Tracking: .4 seconds
  • SiteComm interference free communication
  • USB 2.0 Slot (Host+Slave)
  • RS-232C Serial
  • Color touch TFT 800 x 480 display
  • Keyboard with 24 keys with illuminator
  • Battery life of up to 4 hours
  • IP65 Rating
  • Bluetooth Class 1
  • Operating temperature of -20°C to 50°C or -4°F to 122°F
  • Turning speed of 85°/ Second
  • Tracking speed of 15
  • Weighing 4.8 kg with no battery or tribrach or 10.58 lbs
