- Patented Z-Blade™ technology
- 600-channel “7G”
- Hot-swappable batteries
- Internal TxRx UHF radio
- L-band satellite capable GNSS antenna
- Built-in cellular modem and Wi-Fi comuunication
- Anti-theft technology
- eLevel technology

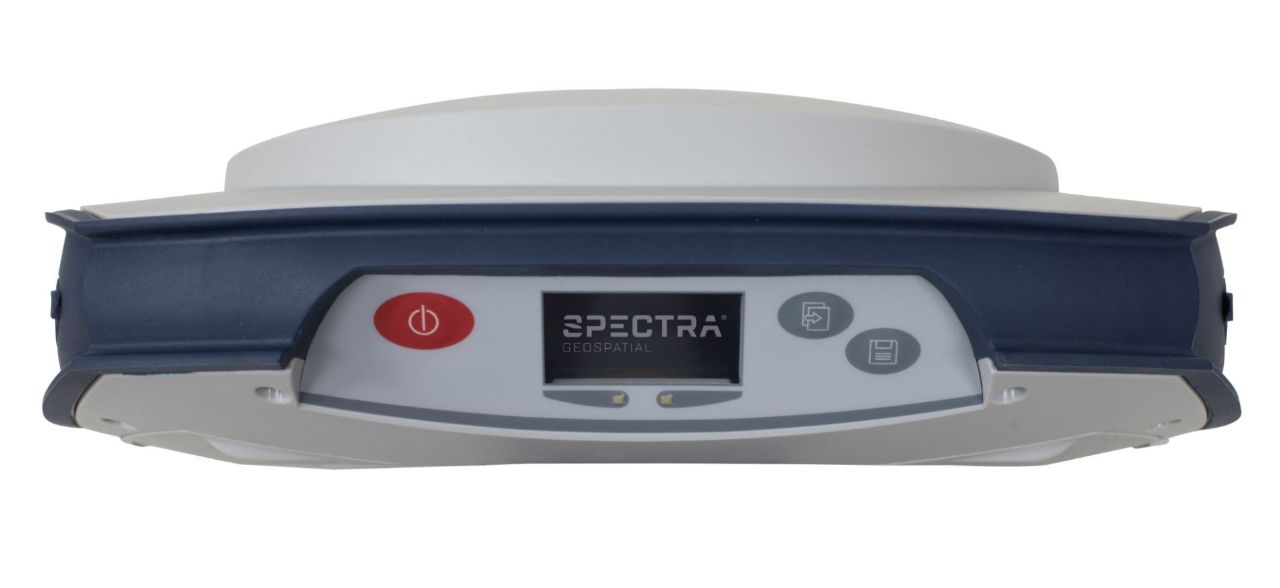

SP85 GNSS RECEIVER
The Spectra Geospatial® SP85 is a next generation GNSS receiver
that combines decades of GNSS RTK technology with revolutionary
new GNSS processing. Featuring the new 600-channel “7G” chipset
combined with the patented Trimble Z-Blade™️ GNSS‑centric
technology, the SP85 system is optimized for tracking and
processing signals from all GNSS constellations in challenging
environments. With unmatched connectivity in the GNSS receiver
market, the SP85 offers a unique combination of integrated 3.5G
cellular, Wi-Fi® and UHF communications with SMS, e-mail and
anti-theft technology. These powerful capabilities, packaged in an
ultra-rugged housing and patented antenna design, make SP85 an
extremely versatile turnkey solution that can be used with unlimited
operation time because of the SP85’s hot-swappable, dual battery
setup.
UNIQUE 7G GNSS-CENTRIC TECHNOLOGY
Patented Z-Blade processing technology running on a next
generation Spectra Geospatial 600-channel 7G ASIC fully utilizes
all 6 GNSS systems: GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS
and SBAS, in addition to MSS corrections delivered via L-band.
Unlike GPS-centric technology which requires a minimum
number of GPS satellites for GNSS processing, Z-Blade️ unique
GNSS-centric capability optimally combines GNSS signals without
dependency on any specific GNSS system; this allows SP85 to
operate in GPS-only, GLONASS-only, Galileo-only or BeiDou-only
mode if needed. In addition, SP85 supports RTCM 3.2 Multiple
Signal Messages (MSM), a standardized definition for broadcasting
all GNSS signals from space, regardless of their constellation.
This protects the surveyor’s investment well into the future by
providing superior performance and improved productivity as new
signals become available.
SMS AND E-MAIL MESSAGING
SP85 has a unique combination of communication technologies
including an integrated 3.5G GSM/UMTS modem, Bluetooth® and
Wi-Fi connectivity, and optional internal UHF transmit radio,
providing unmatched connectivity for the user. The cellular
modem may be used for SMS (text message) and e-mail alerts as
well as regular Internet or VRS connectivity. SMS (text messages)
can be used to monitor and configure the receiver. Likewise,
SP85 can use all available RTK correction sources and connect to
the Internet from the field using Wi-Fi hotspots, where available.
The internal UHF transmit/receive radio allows for quick and easy
setup as a local base station. This saves time and increases the
surveyor’s efficiency, allowing for more productive workflows.
The Spectra Geospatial® SP85 is a next generation GNSS receiver
that combines decades of GNSS RTK technology with revolutionary
new GNSS processing. Featuring the new 600-channel “7G” chipset
combined with the patented Trimble Z-Blade™️ GNSS‑centric
technology, the SP85 system is optimized for tracking and
processing signals from all GNSS constellations in challenging
environments. With unmatched connectivity in the GNSS receiver
market, the SP85 offers a unique combination of integrated 3.5G
cellular, Wi-Fi® and UHF communications with SMS, e-mail and
anti-theft technology. These powerful capabilities, packaged in an
ultra-rugged housing and patented antenna design, make SP85 an
extremely versatile turnkey solution that can be used with unlimited
operation time because of the SP85’s hot-swappable, dual battery
setup.
ANTI-THEFT PROTECTION
A unique anti-theft technology secures the SP85 receiver when
installed as a field base station in remote or public areas and can
detect if the receiver has been disturbed, moved, or stolen. This
technology allows the surveyor to lock the device to a specific location
and make it unusable if the device is moved elsewhere. In this case,
the SP85 receiver will generate an audio alert and show an alert
message on its display. Additionally, a SMS or e-mail will be sent to
the surveyor’s mobile phone or computer and provides the receiver’s
current coordinates to allow tracking of its position and follow for a
quick recovery of the receiver. SP85’s anti-theft technology provides
surveyors with remote security and peace of mind.
THE MOST POWERFUL TOOL FOR RELIABLE FIELD USE
The SP85’s rugged housing, created by Spectra Geospatial‘s
engineering design lab in France, incorporates a host of practical
innovations. Dual hot-swappable batteries can be easily exchanged
in the field as a one hand operation for an interruption-free working
day, ensuring surveyors remain productive until the job is done. The
impact-resistant fiberglass reinforced casing, designed to withstand
2 metre pole drops and waterproof to IP67, ensures that SP85 can
handle the toughest outdoor conditions. The patented UHF antenna,
set inside the rugged carbon fiber rod, extends the range of RTK
radio performance at the same time as armoring protection. The
sunlight-readable display offers instant access to key information
like the number of satellites, RTK status, battery charge and available
memory. With eLevel technology, the user is able to focus in one
place when leveling and measuring as well as automatically store
measurements when the receiver is level. These powerful design
features combine to make SP85 the most capable, most reliable GNSS
receiver, backed by a comprehensive standard 2 year warranty.
General SP85 Specs:
GNSS CHARACTERISTICS
• 600 GNSS channels
– GPS L1C/A, L1P(Y), L2C, L2P(Y), L5
– GLONASS L1C/A, L1P, L2C/A, L2P, L3
– BeiDou (Phase III) B1, B2
– Galileo E1, E5a, E5b, E5 AltBOC
– QZSS L1C/A, L1C, L2C, L5
– IRNSS L5
– SBAS L1C/A, L5 (WAAS, EGNOS, MSAS, GAGAN, SDCM)
– L-band MSS
• Support for Trimble CenterPoint® RTX real-time
correction services
• Patented Z-Blade technology for optimal GNSS performance
– Full utilization of signals from all 7 GNSS systems (GPS,
GLONASS, BeiDou, Galileo, QZSS, IRNSS and SBAS)
– Enhanced GNSS-centric algorithm: fully-independent
GNSS signal tracking and optimal data processing,
including GPS-only, GLONASS-only, Galileo-only, or
BeiDou‑only solution (Autonomous to full RTK)
• Fast Search engine for quick acquisition and re-acquisition
of GNSS signals
• SBAS ranging for using SBAS code & carrier observations
and orbits in RTK processing
• Patented Strobe™ Correlator for reduced GNSS multi-path
• Up to 20 Hz real-time raw data (code & carrier and
position output)
• Supported data formats: ATOM, CMR, CMR+, RTCM 2.1,
2.2, 2.3, 3.0, 3.1 and 3.2 (including MSM), CMRx and sCMRx
(rover only)
• NMEA 0183 messages output
REAL-TIME ACCURACY (RMS) (1)(2)(7)
SBAS (WAAS/EGNOS/MSAS/GAGAN)
• Horizontal: < 50 cm
• Vertical: < 85 cm
Real-Time DGPS position
• Horizontal: 25 cm + 1 ppm
• Vertical: 50 cm + 1 ppm
Real-Time Kinematic Position (RTK)
• Horizontal: 8 mm + 1 ppm
• Vertical: 15 mm + 1 ppm
Network RTK (6)
• Horizontal: 8 mm + 0.5 ppm
• Vertical: 15 mm + 0.5 ppm
POST-PROCESSED KINEMATIC (PPK)
• Horizontal: 8 mm + 1 ppm
• Vertical: 15 mm + 1 ppm
REAL-TIME PERFORMANCE
• Instant-RTK initialization
– Typically 2 sec for baselines < 20 km
– Up to 99.9% reliability
• RTK initialization range: over 40 km
POST-PROCESSING ACCURACY (RMS) (1)(2)(7)
Static & Fast Static
• Horizontal: 3 mm + 0.5 ppm
• Vertical: 5 mm + 0.5 ppm
High-Precision Static (3)
• Horizontal: 3 mm + 0.1 ppm
• Vertical: 3.5 mm + 0.4 ppm
DATA LOGGING CHARACTERISTICS
Recording Interval
• 0.05 - 999 seconds
PHYSICAL CHARACTERISTICS
Size
• 22.2 cm × 19.4 cm × 7.5 cm (8.7 × 7.6 × 3.0 in) (L × W × H)
Weight
• 1.17 kg (2.57 lb)
User Interface
• Graphical PMOLED display
• WEB UI (accessible via Wi-Fi) for easy configuration,
operation, status, and data transfer
I/O Interface
• RS232 serial link
• USB 2.0/UART
• Bluetooth 5.0 dual mode
• Wi-Fi (802.11 b/g/n)
• 3.5G quad-band GSM (850/900/1800/1900 MHz) / penta-band
UMTS module (800/850/900/1900/2100 MHz)
Memory
• 4GB internal memory NAND Flash (3.5 GB user data)
• Over two years of 15 sec. raw GNSS data from 14 satellites
• SD/SDHC internal memory card (up to 32GB)
Operation
• RTK rover & base
• RTK network rover: VRS, FKP, MAC
• NTRIP, Direct IP
• CSD mode
• Post-processing
• RTK bridge
• UHF repeater
• UHF networking
• Trimble Center Point RTX (satellite and cellular/IP)
Environmental Characteristics
• Operating temperature: -40° C to +65 °C
(-40° C to +149 °F) (4)
• Storage temperature: -40° C to +85 °C
(-40° C to +185 °F) (5)
• Humidity: 100% condensing
• IP67 waterproof, sealed against sand and dust
• Drop: 2m pole drop on concrete
• Shock: ETS300 019
• Vibration: MIL-STD-810F
Power Characteristics
• 2 Li-Ion hot-swappable batteries, 32.6 Wh
(2 x 7.4 V, 2200 mAh)
• Battery life time (two batteries): 10 hrs
(GNSS On, and GSM or UHF Rx On)
• External DC power: 9-28 V
Standard System Components
• SP85 receiver
• 2 Li-Ion batteries
• Dual battery charger, power supply and international power
cord kit
• Tape measure (3.6 m / 12 ft)
• 7 cm pole extension
• USB to mini-USB cable
• Hard case
• 2 year warranty
Optional System Components
• SP85 UHF Kit (410-470 MHz 2W TRx)
• SP85 Field Power Kit
• SP85 Office Power Kit
• Data collectors
– ST100
– Ranger®️ 7
– Ranger️ 5
– MobileMapper® 6
• Field software
– Origin
– Origin Lite
1 Accuracy and TTFF specifications may be affected by atmospheric conditions,
signal multipath, satellite geometry and corrections availability and quality.
2 Performance values assume minimum of five satellites, following the
procedures recommended in the product manual. High multi-path areas,
high PDOP values and periods of severe atmospheric conditions may
degrade performance.
3 Long baselines, long occupations, precise ephemeris used
4 At very low temperatures UHF module should not be used in the
transmitter mode.
5 Without batteries. Batteries can be stored up to +70 °C.
6 Network RTK PPM values are referenced to the closest physical base station.
7 Receiver initialization time varies based on GNSS constellation health, level of
multipath, and proximity to obstructions such as large trees and buildings.
