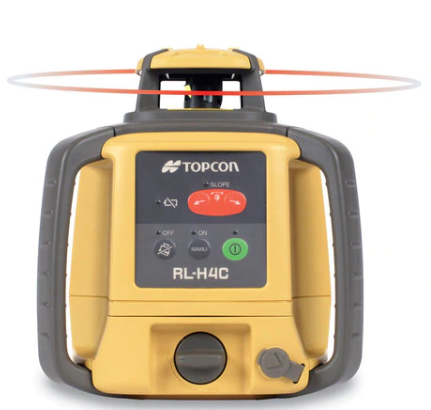

Topcon RL-H4C Laser Level

Topcon′s NEW RL-H4C auto-leveling laser combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arch seconds meaning whether you′re checking grade or setting batter boards you′re going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600ft (800m) diameter working radius making it a great reference for machine mounted receivers. All of these features plus optional dry, rechargeable battery operation makes the RL-H4C more than twice the laser offered by anyone else.
Fabricante: Topcon
Número de pieza del fabricante: 313980752
Envío gratis
*
Precio antiguo: $795.00
$715.50

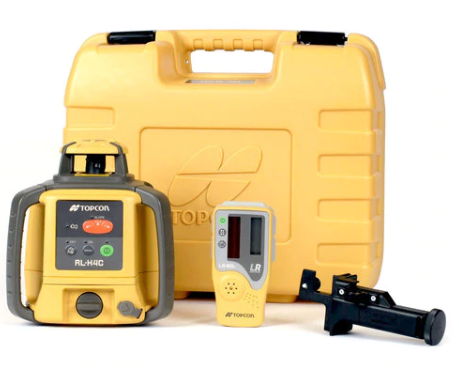

The Topcon RL-H4C Self-Leveling Rotary Laser 57177 is accurate 1/16 inches at 100 feet, a range of up to 2,600 feet, and leveling within 5 degrees.  Its slope matching feature makes it an excellent tool for excavating. This self-leveling laser rotates at 600 RPM in full gear. If it is knocked out of position, it automatically re-levels itself with an outstanding accuracy of +/-10 arc seconds in angular measurements. The included laser receiver extends the range of this level to its full working range.  It is durable enough to withstand drops, and is both water and dust proof. The batteries provide up to 80 hours of continuous use and it automatically shuts off after 30 minutes of non-use.  There is a low battery indicator, and an out-of level alert that works on the 2-way communication system. It has fine and normal accuracy options, and 2 LCD displays - one on the front, the other on the rear.  Plus it comes with batteries and a rod clamp. Topcon's RL-H4C has convenient features like slope matching and high speed rotations. The new dual handle design makes this horizontal level easy to maneuver. This rugged construction laser has dry "D" batteries that provide up to 100 hours of use.  It is also weather-resist, being both dust-proof and resistant to water jets. The Topcon rotary laser also comes with a battery holder, a carrying case, user manual, and a 5 year limited warranty.



Item Weight5.3 pounds
Product Dimensions7 x 8.5 x 7.7 inches
OriginJapan
Item model numberRL-H4C
ColorYellow
Item Package Quantity1
Measurement Accuracy±1/16 inch accuracy at 100 feet
Laser Beam ColorRed
Included ComponentsNo
Batteries Included?Yes
Batteries Required?Yes
Battery Cell TypeAlkaline
Average Battery Life100 hours





Especificaciones de productos
Nombre del atributoValor de atributo
Angular Accuracy10"
Range2,600 ft.
BatteryDry Alkaline
Warranty5 Years
